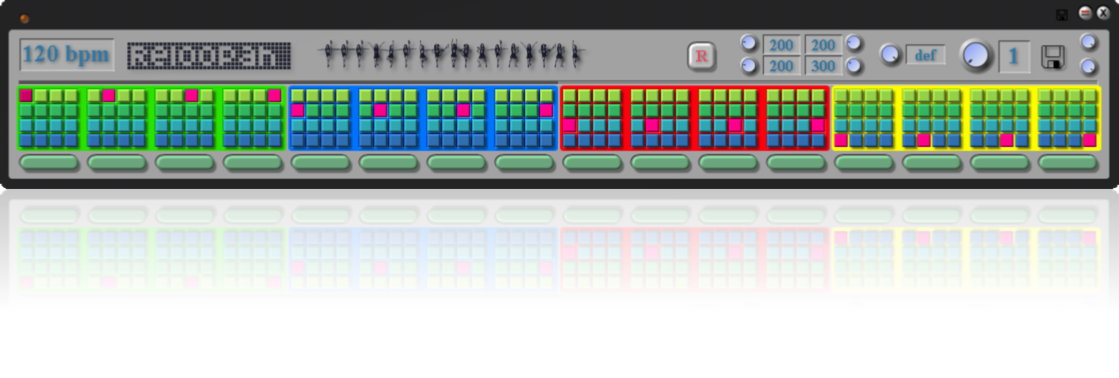

Beat reconstruction device. Incoming audio is cut into 16 slices which can be rearranged freely.

controls:

• bpm - have to be set accordingly to the tempo of the input wave/host sequencer tempo
• 16 slice positioners - sets the new position of the respective slice
• 16 output selectors - output 1 or 2 can be selected per slice. (can also be used for muting slices)
• R(andom) - button for random positioning all slices
• four dezip controls (WTatt, WTrel, NWatt, NWrel) - to reduce crackling (if input wave is not perfectly in sync and/or has much harmonic content)
• slice scaling - sets length of all slices (min to def)
• pattern selector - 18 patterns can be selected. a pattern includes settings for: slice position, output select/mute, dezip settings, slice scaling.
• sliceSelectPresetList - presets store and recall all settings of a pattern (see above).
• device preset list - stores everything, including tempo.
• output1 and output2 gain controls

in/outputs:

• inputs: audio L+R, ramp ,  MIDI
• outputs: out 1L, 1R, 2L, 2R

Download device: here  ; Downolad dsp file RampGen: here

discussion on planetz: here
